Standard 35 G.P.M. Pump System Complete
Parts Include:
1. 8 hp. engine
2. Pump and syphon screen
3. Hot valve and valve guard
4. Engine cover (not shown)
5. L.P.G. engine conversion (optional)
1. 8 hp. engine
2. Pump and syphon screen
3. Hot valve and valve guard
4. Engine cover (not shown)
5. L.P.G. engine conversion (optional)
P02150
P02200 for 260, 350 & 425 gal.Kettles
P02250 for 845 & 1200 gal. Kettles
P02225 for 540, 695 gal. Kettles
P02250 for 845 & 1200 gal. Kettles
P02225 for 540, 695 gal. Kettles
Parts Include:
1. 9 hp. engine, (10 hp. engine optional)
2. Pump and syphon pickup
3. Hot valve and valve guard
4. Engine cover (not shown)
5. L.P.G. engine conversion (optional)
1. 9 hp. engine, (10 hp. engine optional)
2. Pump and syphon pickup
3. Hot valve and valve guard
4. Engine cover (not shown)
5. L.P.G. engine conversion (optional)
H.D 60 G.P.M. Pump System Complete
H.D 60 G.P.M. Pump System Complete
Built in surge chamber greatly reduces back pressure significantly extending the life of the engine and pump.
*Syphon screen sold separately.
Built in surge chamber greatly reduces back pressure significantly extending the life of the engine and pump.
*Syphon screen sold separately.
Patented
Hot valve: V00225
Syphon Screen
w/guard: K11250
L/guard: K11300
guard only: K11325
Hot valve: V00225
Syphon Screen
w/guard: K11250
L/guard: K11300
guard only: K11325
Standard Duty: Model 35 G.P.M. Pump
Standard 35 G.P.M. positive displacement rotary gear pump. Pump bracket extends pump head down into the hot asphalt for quicker start-up time.
Standard 35 G.P.M. positive displacement rotary gear pump. Pump bracket extends pump head down into the hot asphalt for quicker start-up time.
P01350
P01400
Heavy Duty: Model 60 G.P.M. Pump
Heavy duty 60 G.P.M. positive displacement rotary gear pump. Pump bracket ex-tends pump head down into hot asphalt for quicker start-up time.
Heavy duty 60 G.P.M. positive displacement rotary gear pump. Pump bracket ex-tends pump head down into hot asphalt for quicker start-up time.
Product Specs:
Weight 85 lbs
Weight 85 lbs
Product Specs:
Weight 35 lbs
Weight 35 lbs

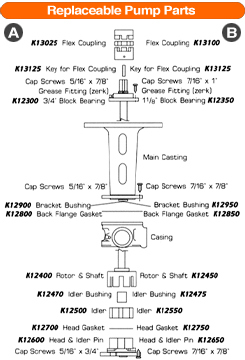

Replaceable Pump Parts
A. Standard Pump Parts for P01350
B. Heavy Pump Parts for P01400
A. Standard Pump Parts for P01350
B. Heavy Pump Parts for P01400
Flex Coupling with Bronze Spider
1” x 1” Flex coupling — engine to right angle drive K13050
Bronze spider for flex coupling K13150
Bronze spider for flex coupling K13150
Gear Box and Gear Box Mount
Right angle drive gear box K13200
Right angle drive gear box mount K13225
Right angle drive gear box mount K13225
